SLIT LAMP MICROSCOPE MSL-3S

---

 TECHNICAL

• Vertical (up/down)
• Illumination
  6V20W Halogen or 5W LED
• Slit Tilt
• Weight
• IPD Range
  49-78 mm
• Lateral (left/right)
  107 mm
• Longitudinal (in/out)
  100 mm
• Built-in-Filters
  Red free, Cobalt blue, Heat absorbing
  Red free, Cobalt blue, Heat absorbing, Neutral density
• Table Base Size
  367 x 360 x 5.5 mm (Metal)

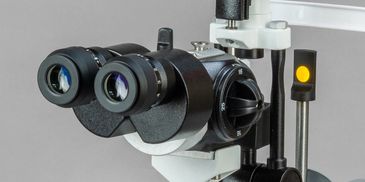

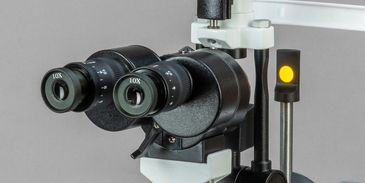

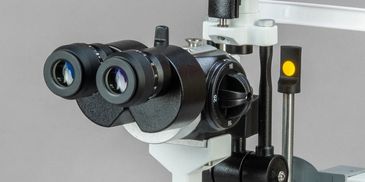

• Microscope
  Galilean
• Magnification
  3-step: 10x, 16x, 25x
• Slit Apertures
  0.3, 1, 3, 5, 9, 12 mm and continuous 1.5 to 12.0 mm
• Slit Length/Width
  0-12 mm
• Optional Accessories
  Tonometer,breath shield, Beam splitter, Cameras, Diffuser, Motorized table

a slit lamp is an instrument consisting of a high-intensity light source that can be focused to shine a thin sheet of light into the eye. It is used in conjunction with a Biomicroscope. The lamp facilitates an examination of the anterior segment and posterior segment of the human eye, which includes the eyelid ,sclera, conjunctiva, iris, natural crystalline lens and cornea. The binocular slit-lamp examination provides a stereoscopic magnified view of the eye structures in detail, enabling anatomical diagnoses to be made for a variety of eye conditions. A second, hand-held lens is used to examine the retina.
