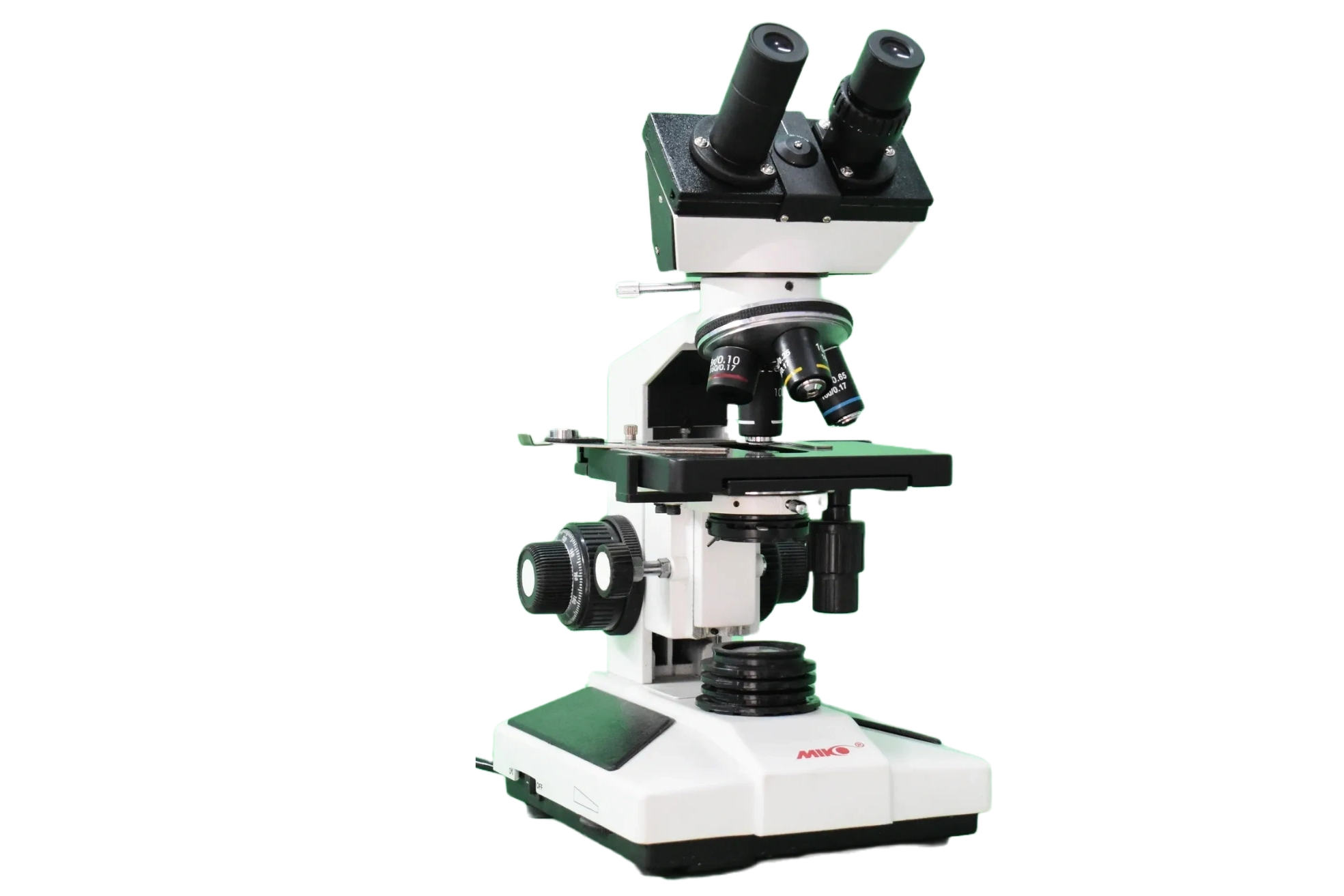

M52

UPRIGHT CLINICO MICROSCOPE

Prefect choice for both classroom and laboratory environments, the M52 reflects a compact design composed of a durable aluminum stand, high throughput glass and optical coatings, and brass gears, all of which position the M52 to withstand the most demanding of user environments. And with lead-free optics and paints.

ASK A QUESTION/REQUEST A DEMO

SPECIFICATIONS

Stand

 aluminum die-cast with ergonomic hand rests for enhanced comfort and stability.

Viewing Bodies

 45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm

Eyepiece

 Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating

Nosepiece

 Quadruple nosepiece turret (Ball bearing type) with rubber grip

Objectives

 DP series JIS  Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil),

Mechanical Stage

 Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder

Condenser

 Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides°

Focusing

 Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation

Illumination

 LED or Halogen 6V-20W illumination with variable illumination control. Up to 100,000 hours of LED life and 2,000 hours of Halogen lamp life

Electronics

 Universal input 100V- 240V AC, 50/60Hz, built-in voltage stabilizer

Package Contents

  Power Cable (6ft),  Immersion Oil (with 100x configurations), Nylon Dust Cover & Cleaning Cloth, Styrofoam Casing

WHATSAPP THE QUOTE

OUR BROCHURES

CLINICO BROCHURE

CLINICO User Manual

CLINICO User Manual

 Learn more about the CLINCO's unique value offering.

Download-English

CLINICO User Manual

CLINICO User Manual

CLINICO User Manual

 Learn all about the CLINCO, its functions, and more.

Download-English
